SPECIFICATIONS



Assembly Mode: Portable Recorder
Designed for portability, allowing easy installation and removal without permanent mounting. Suitable for use in multiple vehicles if required.

Audio Recording: Yes
Captures both video and audio simultaneously for comprehensive event documentation.

Battery: Built-In
Includes an internal battery for short-term power supply, ensuring the device can continue recording briefly when disconnected from external power.

Built-in Screen: Yes
Features an integrated display for real-time viewing, playback, and menu navigation without requiring an external monitor.

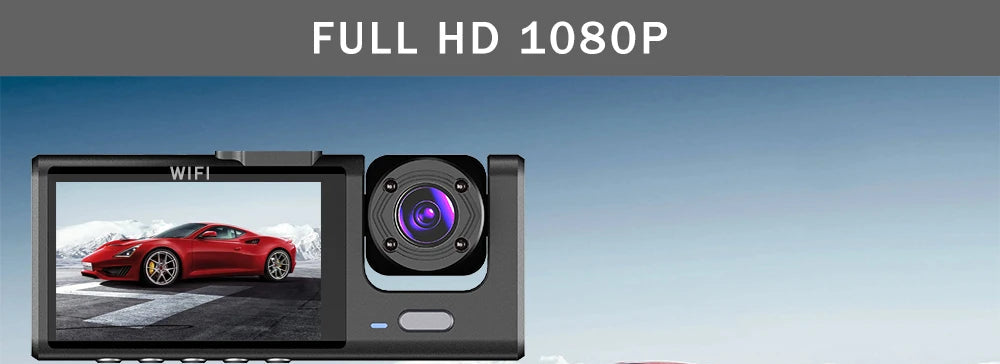

Camera Resolution: 1920×1080
Full HD resolution provides clear, detailed video for accurate playback and analysis.

Chipset Manufacturer: Generalplus
Utilizes a Generalplus chipset, ensuring stable performance and efficient video processing.

Display Size: 2 Inches
Compact 2-inch display balances portability with ease of use for quick on-device review.

Frames Per Second: 30 FPS
Records smooth video at 30 frames per second, reducing motion blur and enhancing clarity.

Batteries Included: No
Ships without a separate replaceable battery; relies on built-in power source.

Item Type: Car DVR
Designed for in-vehicle video recording, offering features optimized for driving safety and incident recording.

Loop-Cycle Recording: Yes
Automatically overwrites the oldest footage when storage is full, ensuring continuous recording without manual file management.

Maximum External Memory: 128GB
Supports microSD cards up to 128GB for extended recording time.

Required Memory Card Speed: Class 10
Requires a Class 10 microSD card for optimal recording performance.

NightShot Function: Yes
Infrared-assisted recording enables clear footage in low-light or nighttime driving conditions.

Number of Lenses: 3
Triple-lens setup for comprehensive coverage, including front, rear, and interior views.

OSD Language Options: Arabic, Chinese (Simplified), English, French, German, Hebrew, Italian, Japanese, Korean, Portuguese, Russian, Spanish
Provides multilingual on-screen display for global usability.

Origin: Mainland China
Manufactured in Mainland China with compliance to relevant production standards.

Original Packaging: Yes
Ships in factory-sealed packaging to ensure authenticity and protection during transit.

Pixels: 800 Megapixels (Sensor Rating)
High pixel count contributes to greater image detail and sharpness.

Power Source: Corded Electric
Primarily powered through a vehicle’s power outlet for continuous operation.

Rear Camera: Yes
Includes a rear-facing camera for reversing assistance and rear traffic recording.

Special Features:

• G-Sensor: Automatically locks video files upon detecting sudden acceleration, collision, or impact to prevent overwriting.

• Digital Zoom: Allows closer inspection of recorded footage.

• Motion Detection: Initiates recording when motion is detected near the vehicle.

• SD/MMC Card Support: Compatible with standard removable storage formats.

• Anti-Surge Voltage Impact: Protects the device from sudden power spikes.

• Anti-Fog: Maintains clear recording in foggy conditions.

• Anti-Vibration: Minimizes blurring caused by vehicle movement.

• Real-Time Surveillance: Offers live monitoring while driving.

• Automatic White Balance: Adjusts colors for natural image rendering in various lighting conditions.

• Wide Dynamic Range (WDR): Enhances detail in both bright and dark areas of the image.

• Wi-Fi Function: Allows wireless connectivity for viewing, downloading, and managing videos on a mobile device.

• Parking Monitor: Records activity around the vehicle when parked.

• 3D Digital Noise Reduction (3D DNR): Improves video clarity by reducing visual noise in low-light environments.



Important Reminder: Memory Card Requirements
Due to the high-speed storage demands of high-definition DVR recording, it is essential to use high-quality U3-grade branded memory cards with C10 speed rating. Low-quality or low-priced memory cards may not meet these performance requirements, leading to recording errors or DVR malfunction.

---

Formatting the Memory Card
When installing a memory card for the first time, format it directly on the DVR to ensure proper compatibility.
Formatting Steps:

1. Insert the memory card into the DVR.

2. Long press the “M” key to access the DVR menu.

3. Navigate to the Format option.

4. Select and confirm to format the memory card.

Important: Do not format the memory card using a computer. Formatting must be performed via the DVR’s menu to ensure correct file system configuration.

---

Wi-Fi Connection Setup
Before connecting your DVR to a mobile phone, install the “Viidure” app from the Apple App Store or Google Play Store.
Connection Steps:

1. In standby mode, long press the “M” key to enter the DVR menu, then navigate to Wi-Fi Settings.

2. In the Wi-Fi menu, note the DVR’s SSID and password.

3. Open the Viidure app on your phone, enable Wi-Fi, and enter configuration mode.

4. Select the DVR’s SSID from the Wi-Fi list, enter the password, and connect.

5. Once connected, you can control and view the DVR through the Viidure app.

---

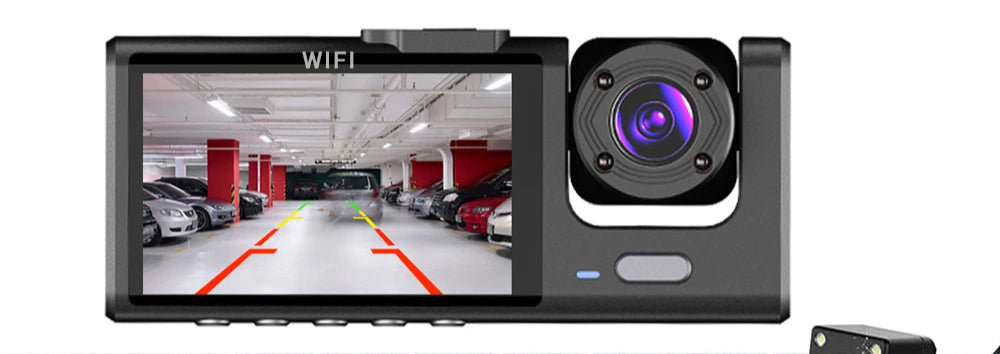

Reversing Assist Function
If your kit includes a rearview camera and you want to enable the reversing assist function:

• Connect the red signal wire of the rearview camera to the car’s reversing light power supply (this light activates when reversing).

• If you do not require the reversing assist function, leave the red signal wire disconnected.

---

24-Hour Parking Monitoring
For continuous recording while the car is turned off, use a Buck Line accessory instead of the standard car charger. The Buck Line connects the DVR directly to the car’s battery or ACC, ensuring uninterrupted power supply.
Note: Because battery and ACC interfaces vary by vehicle model, professional installation of the Buck Line is strongly recommended.

---

Resetting and Restarting
If the DVR freezes or fails to power on due to incorrect operation:

• Locate the small reset hole marked with an “R” on the side of the DVR.

• Insert a pointed tool (such as a toothpick) into the hole and press for 3 seconds.

• The DVR will restart and return to normal operation.



WIFI Car DVR 3 Channel HD 1080P WIFI Inside Vehicle Dash Cam Three Way Camera DVRs Recorder Video Registrator Mini Dashcam Camcorder

Product Specifications:

> 3 Channels: [Front+Interior+Rear]

> Support Wifi

> Screen size: 2 inches

> File format: AVI

>Voltage 1 Current: 5V/1A

> Video resolution: 1080P; 720P; VGA

> Continuour Loop Video: Seamless Loop Recording

> Automatic power on/off: support automatic ignition and shutdown

> Interface: Support USB

> Time Synchronization: Support

> Support memory card: TF Card，Up to 128G

> Built-in stereo: Support

> Frequency: 50HZ / 60HZ



Attention:

The recorder needs to be equipped with a high-speed C10 or higher memory card for normal use. It is recommended to buy memory card packaging in this store to avoid adverse reactions to the product due to the purchase of irregular memory cards!
